Steel Tape Armouring Guards Against Radial Load Not Tension
steel tape armouring, STA armoured cable, DSTA double steel tape armour, steel wire armour SWA, armoured power cable direct burial

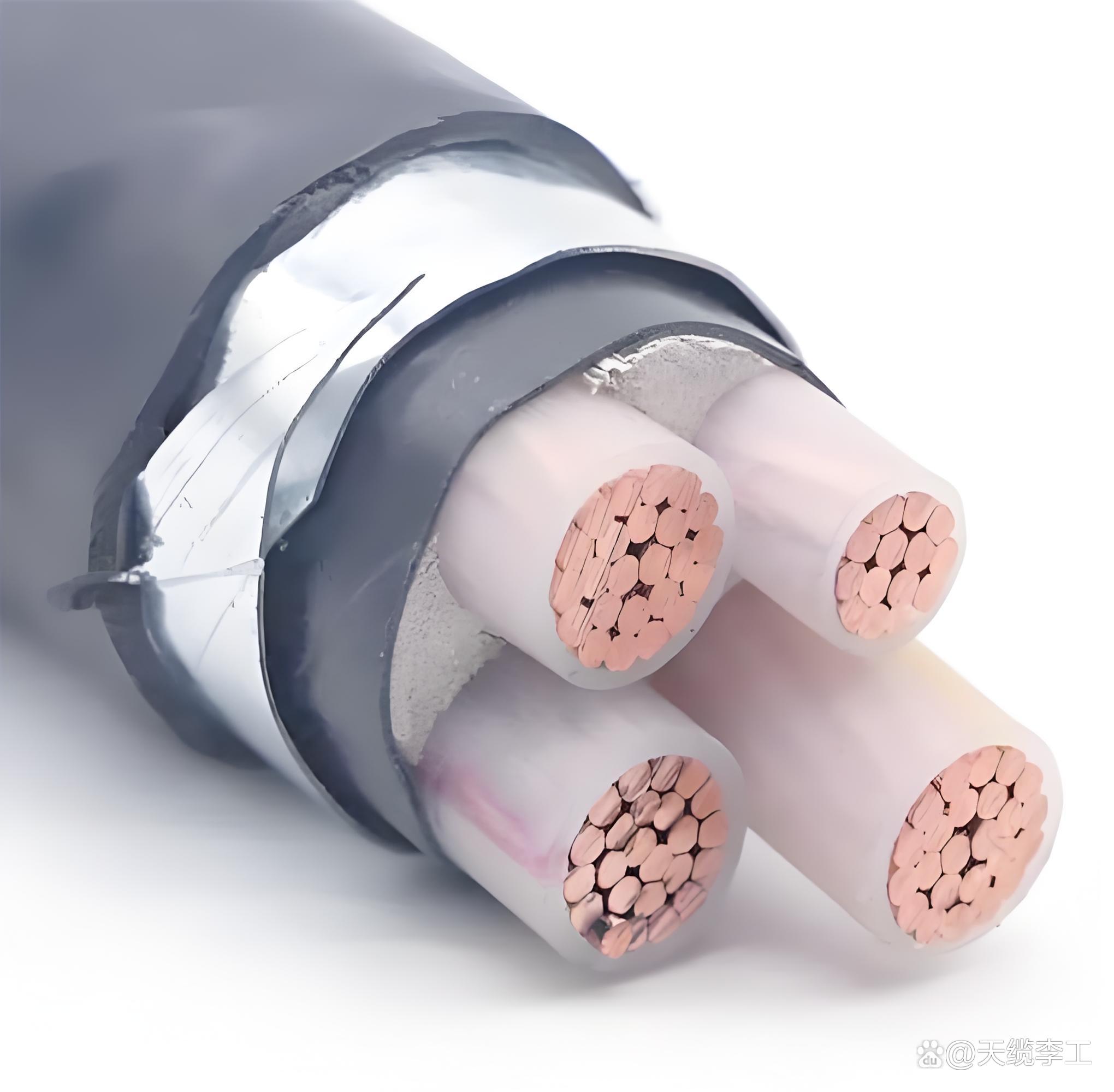

Steel tape armouring protects a cable from the direction of force it will most likely meet underground — and buyers who treat "armoured" as one category choose wrongly. Two galvanised steel strips are wound over the bedding in opposite helices with controlled gap, closed under the oversheath; IEC 60502-1 construction records call the layer DSTA, double steel tape, and Chinese type coding marks it suffix 22 with PVC sheath or 23 with polyethylene. The defence is radial: soil weight, trench rock, ground settlement, rodent teeth and the case engineers design for — a spade striking a buried cable. A continuous steel strip offers no gap for a blade edge to enter, resists point compression better than separated wires, and adds less diameter and cost than wire armour. That is why direct-buried feeders are specified with tape. The limitation is axial: tape carries almost no pulling load; under tension the strips slip and the helix opens. Practice splits by load direction — mining assigns steel tape to roadways and gentle inclines, wire armour to shafts and steep runs; risers, submarine routes and long duct pulls take armour wire, which BS 5467 prescribes as a single layer of galvanised wire for multicore cable. Two electrical checks follow. Armour may serve as the earth-fault path only if its metallic section satisfies the adiabatic equation — a thin tape qualifies far less often than wire, and that is a calculation, not a catalogue claim. Steel around a single AC core forms a magnetic short-circuited circuit that heats, so tape belongs on multicore cable while single-core trefoil circuits use non-magnetic armour. At installation, respect the larger bending radius, clamp tape with fittings sized for it, and provide bonding — a gland that bites the tape without an earth connection has destroyed the protection it was fitted for.
