TypeBTLY · YTTW

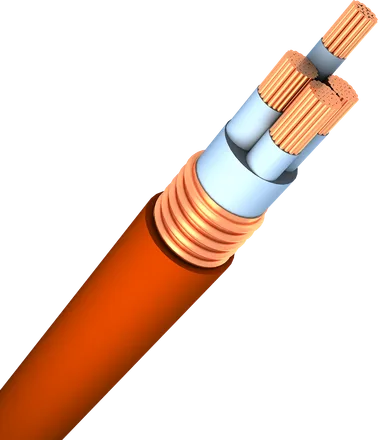

Flexible Mineral-Insulated Fire Cable
Mineral-grade fire safety with engineering-grade flexibility.
A continuously extruded aluminium or copper sheath over flexible mineral insulation allows long delivery lengths and large cross-sections with tight bending radii. Class-A fire performance without the installation pain of rigid MI cable.
Technical data
- Rated voltage
- 0.6/1 kV
- Fire class
- Class A · 950 °C · 90 min
- Cross-section
- 1.5 — 630 mm²
- Bending radius
- ≥ 15D
- Standards
- GB/T 34926 · BS 6387
